Pioneer AXD7616 Remote Control Repair
Job Timeline (Ref 11178-20)
Independent Repair Service Notice:
We are an independent repair service and are not affiliated with any of the brands or manufacturers shown on this website.
All items are customer-owned devices sent to us for professional repair services.
Brand names and logos are used for identification purposes only.
Pioneer AXD7616 Remote Repair Details
Manufacturer
Pioneer
Model
AXD7616
Customer's Fault Description
Main fault is that the master volume buttons - + and - are not working.<br />
The mute button directly below the master volume is also not working.
<br />
There are a significant number of buttons on this remote and they are not all used. All of the other buttons should be working (they have had very light use) but I would be grateful if you could test all of the buttons to confirm they are fully operable.
Remote Fixer Repair Response
This remote arrived safely and on testing was confirmed to have non responsive volume and mute buttons.

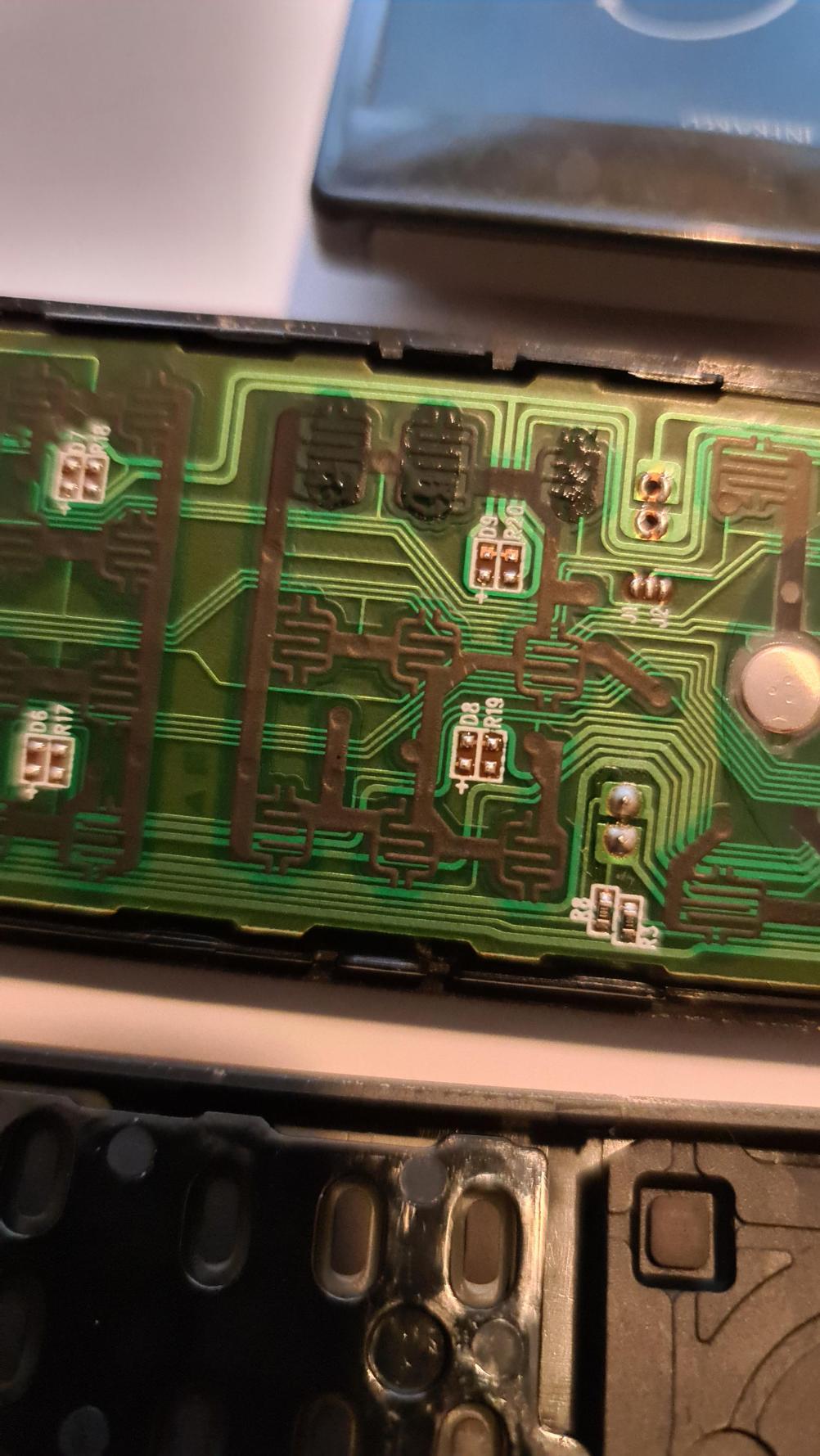

On opening this was found to be due to contamination over the PCB and button pads on the effected buttons (see image), this is caused by sweat from the fingers building up and soaking into the rubber over the years. The pads and PCB was cleared of all contaminants and then replacement conductive pads glued into place which will give it a extra barrier against contaminants from the fingers.
All other buttons were tested as fully functional.

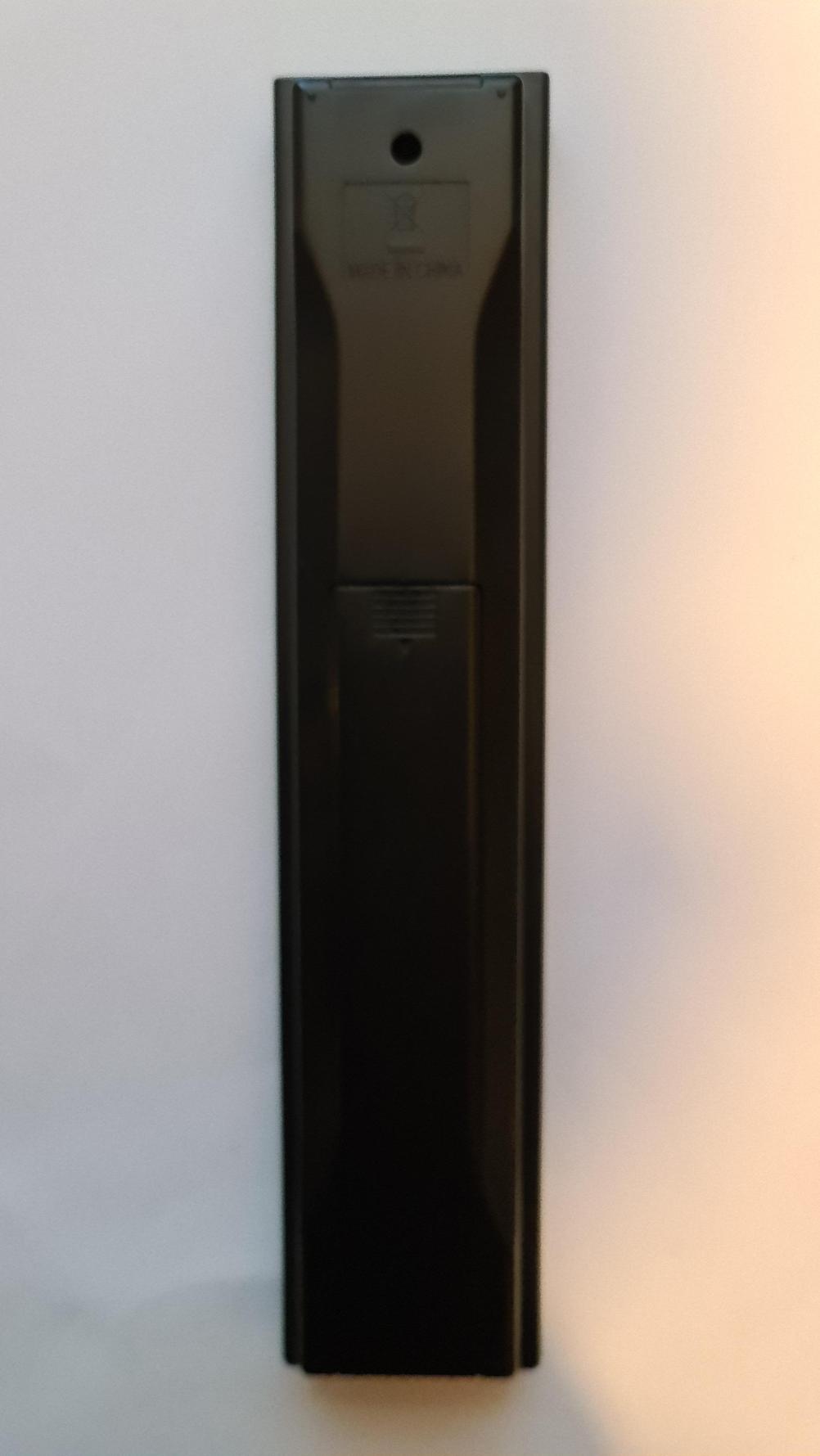

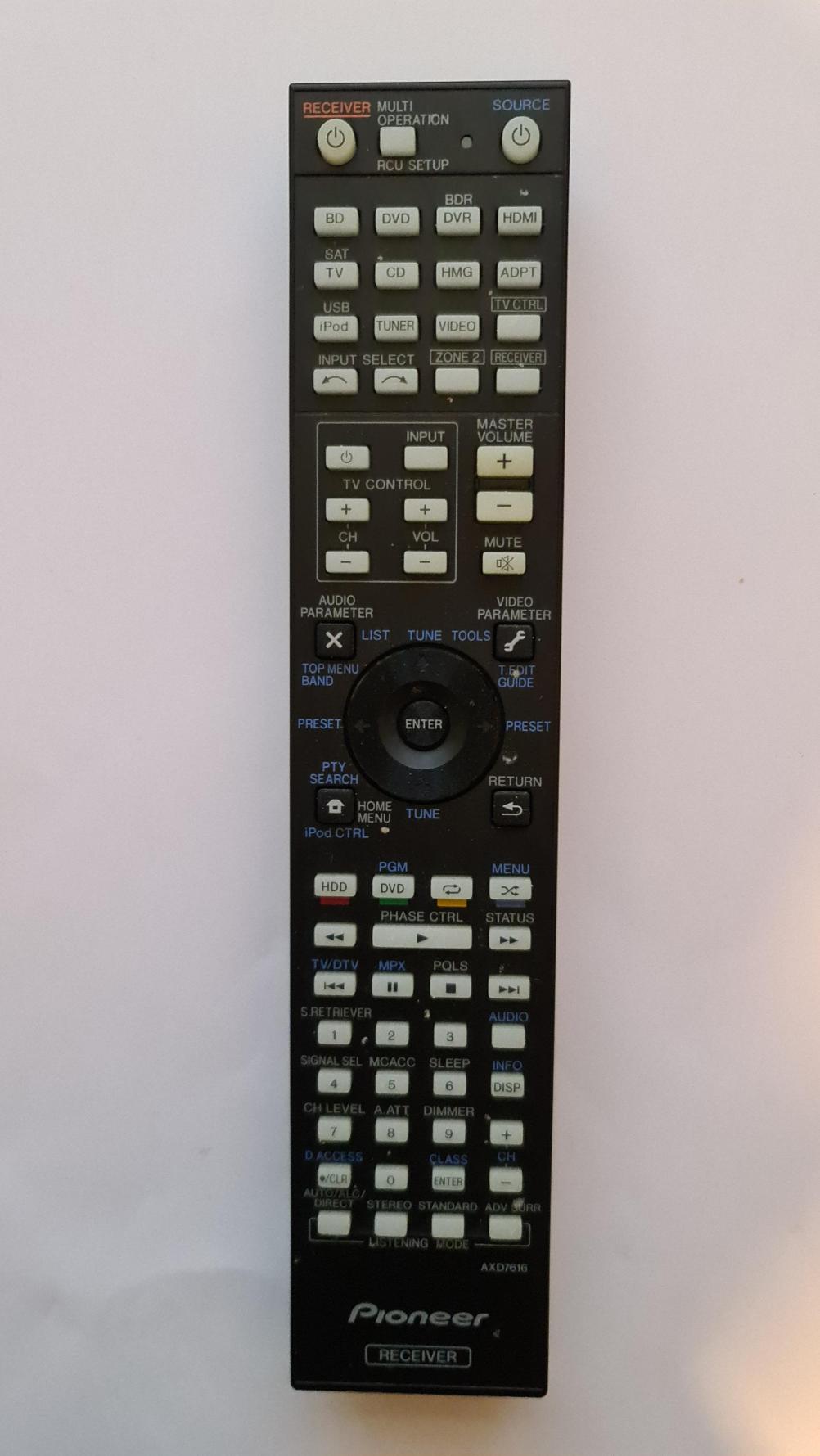

Images of Customer's Remote Control
The following images show the actual remote control sent to us by the customer for professional repair services.
