B&Q WAP-021 EC Remote Control Repair
Job Timeline (Ref 12848-20)
Independent Repair Service Notice:
We are an independent repair service and are not affiliated with any of the brands or manufacturers shown on this website.
All items are customer-owned devices sent to us for professional repair services.
Brand names and logos are used for identification purposes only.
B&Q WAP-021 EC Remote Repair Details
Manufacturer
B&Q
Model
WAP-021 EC
Customer's Fault Description
None of the buttons work ☹ï¸
Remote Fixer Repair Response
This remote arrived safely and on testing was confirmed to be dead.

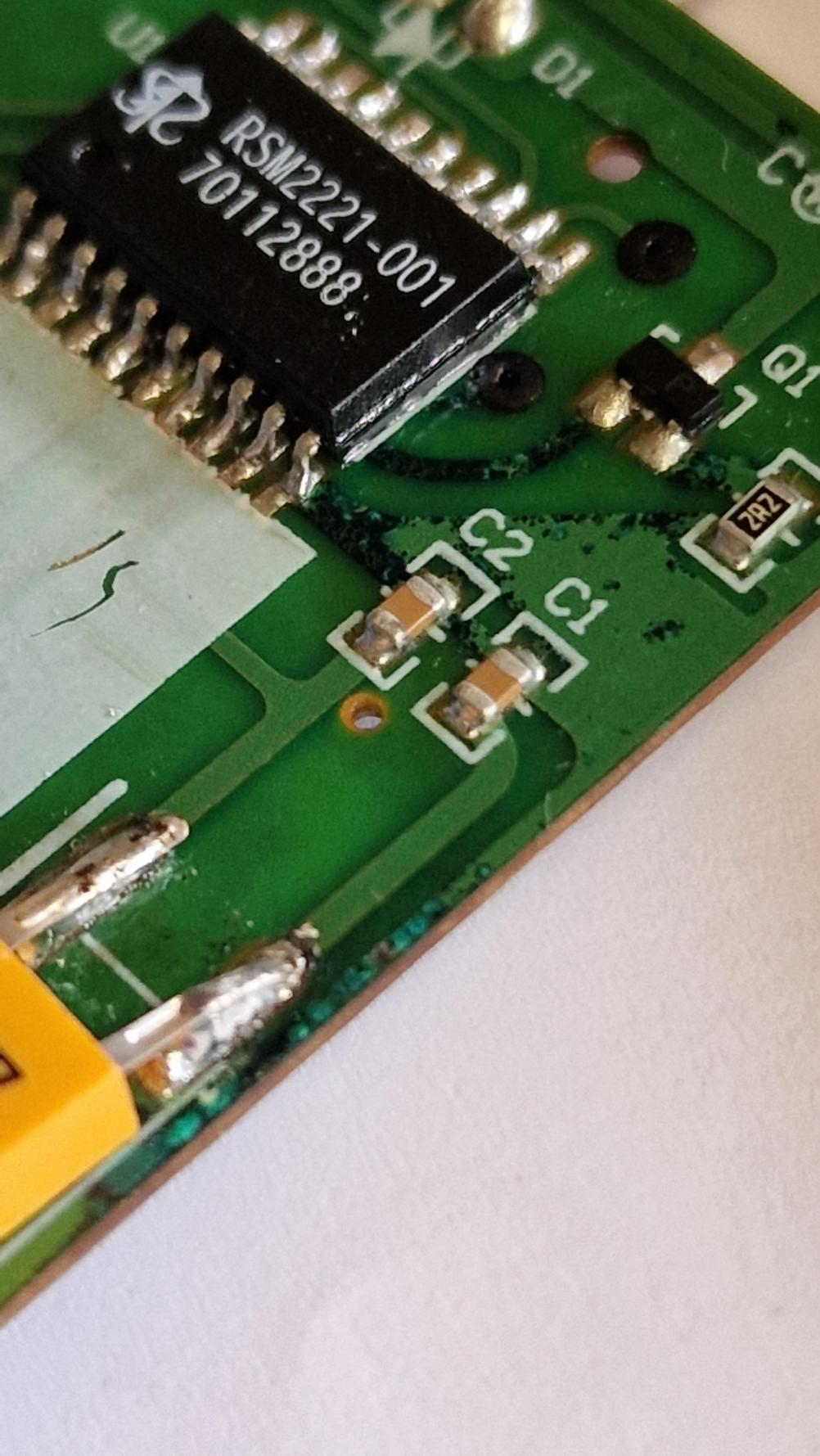

On opening the issue appeared to be caused by an apparent battery leack which had corroded parts of the print, in particular a large amount of corrosion was found to be under the main IC (see image). An attempt was carried out to try and rework the print but sadly the remote remained dead.
After talking with the customer it was concluded that a clone would be a suitable solution.

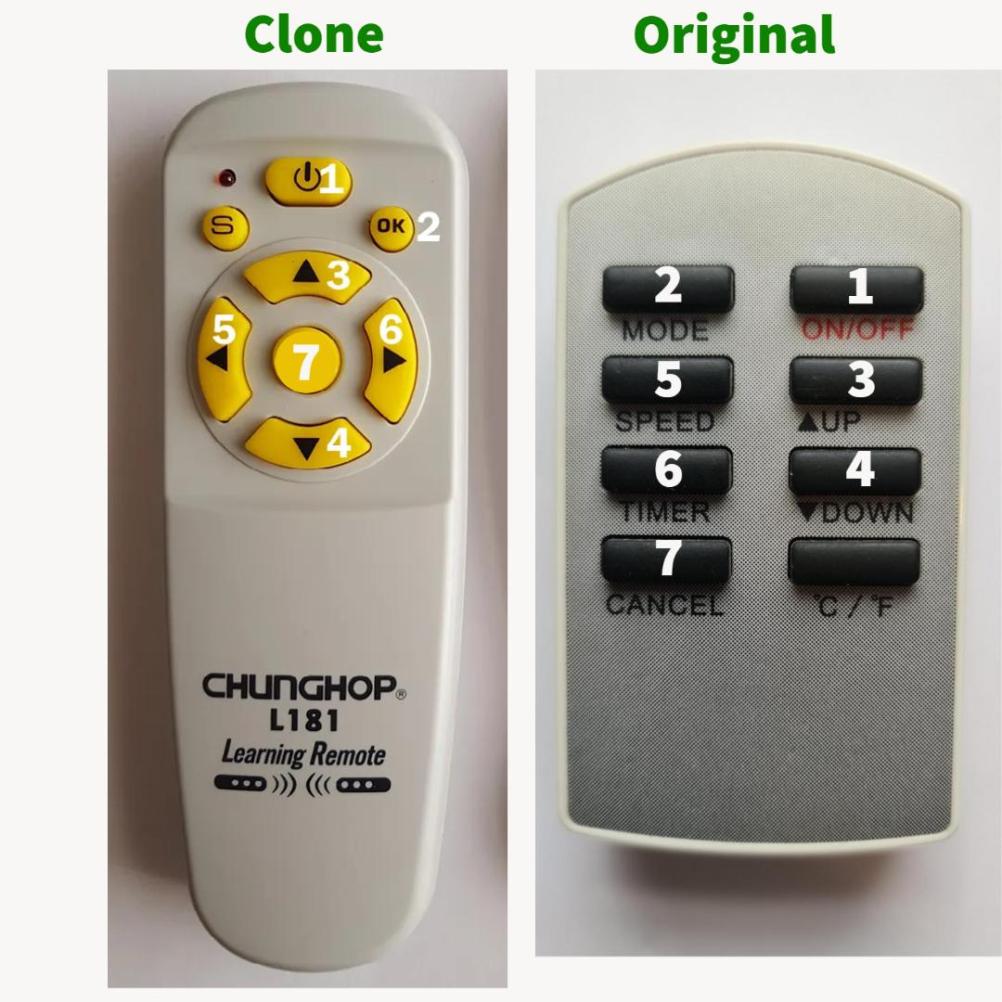

Please see the image below for the clone that we can create, please not that the C / F button is ignored as we can only clone up to 7 buttons.
A Clone was supplied

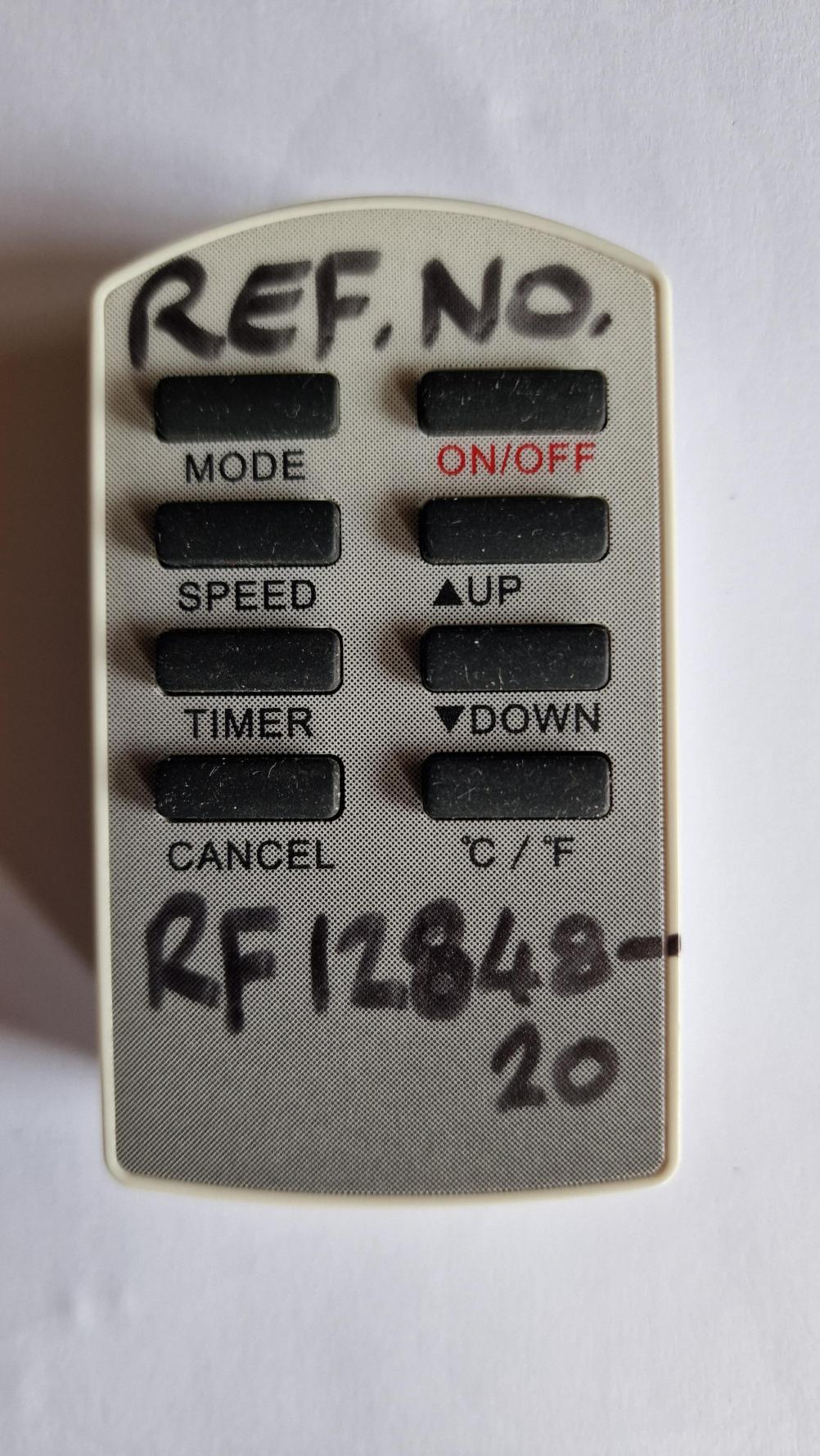

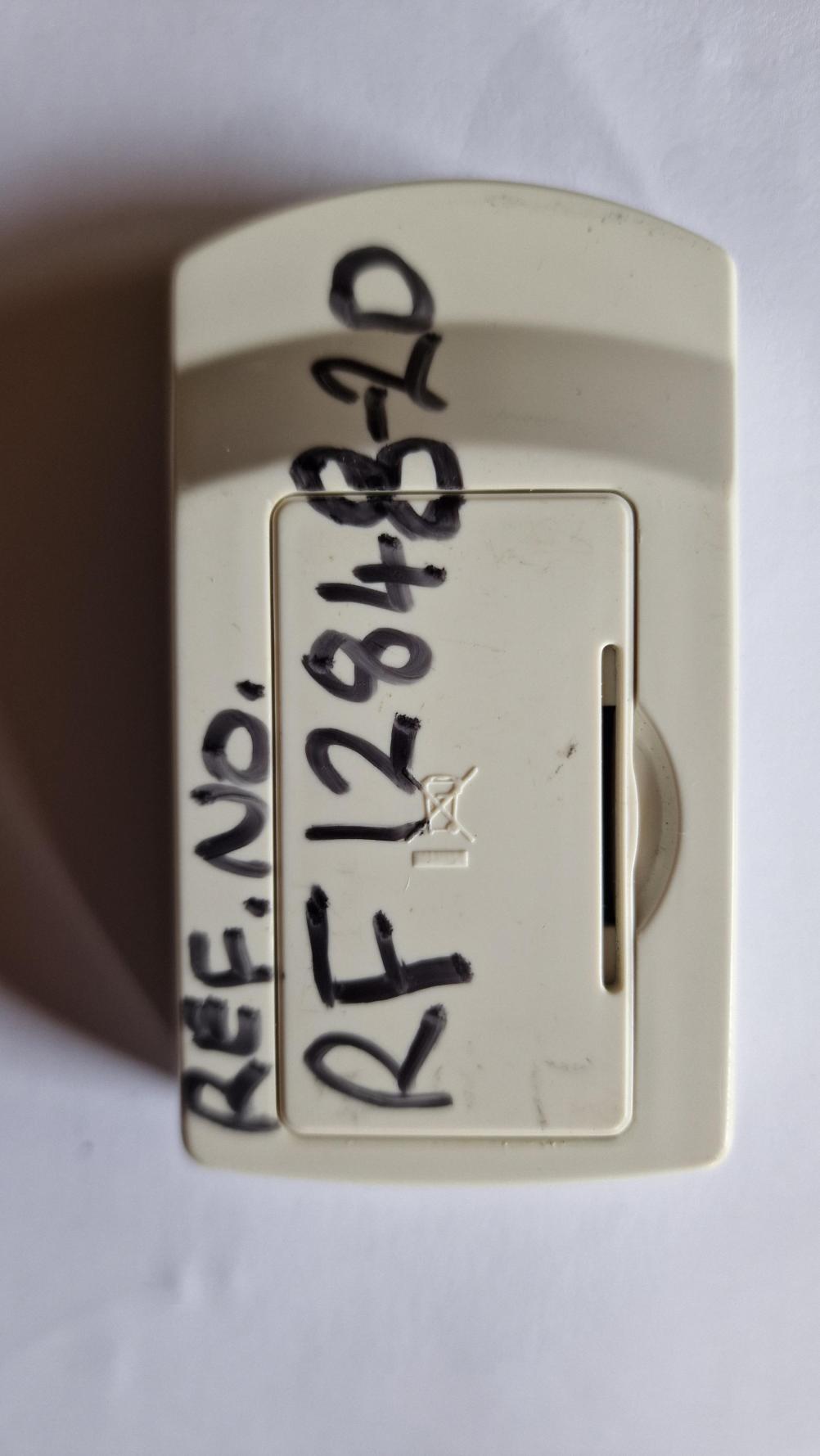

Images of Customer's Remote Control
The following images show the actual remote control sent to us by the customer for professional repair services.
