Job Timeline (Ref 12987-20)

A Timeline of this job can be seen below.

Fault Diagnosed
Remote Repaired
Payment Received
Returned
Repair Engineer : Martin Smith
LinkedIn Facebook
Please view complete details of this job on the rest of this page (scroll down if on a mobile)

TH27-2039-003 8 pin Remote Repair Details

Manufacturer : TH27-2039-003

Model : 8 pin

Customers Fault Description : butoon ruber for up leg not working need cheange full ruber,

Remote Fixer Repair Response (see below) :

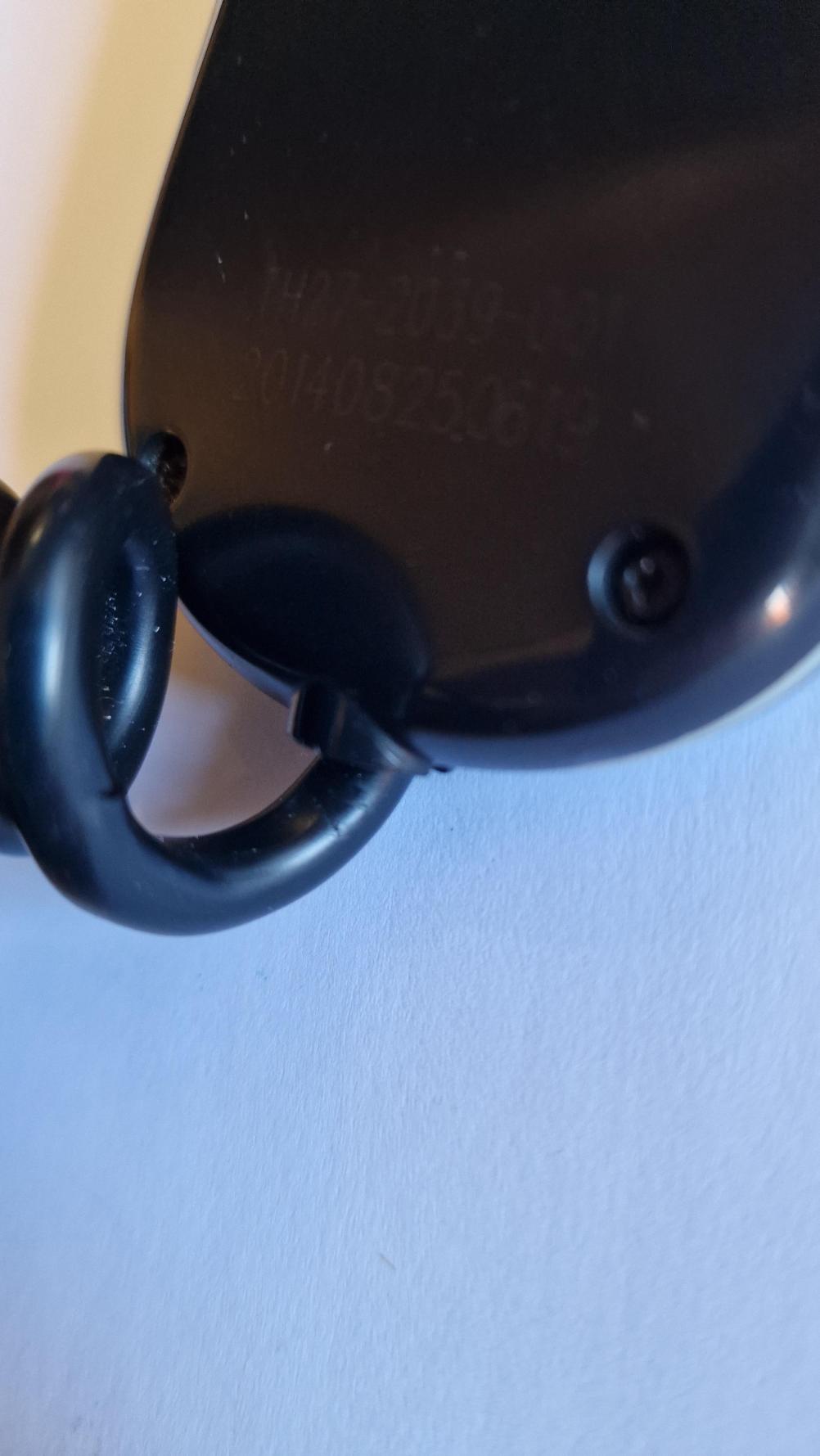

This remote arrived safely from Ilford and on inspection the gromet was missing on the cable (see image), this would make the cable very susceptible to breaks / damage.

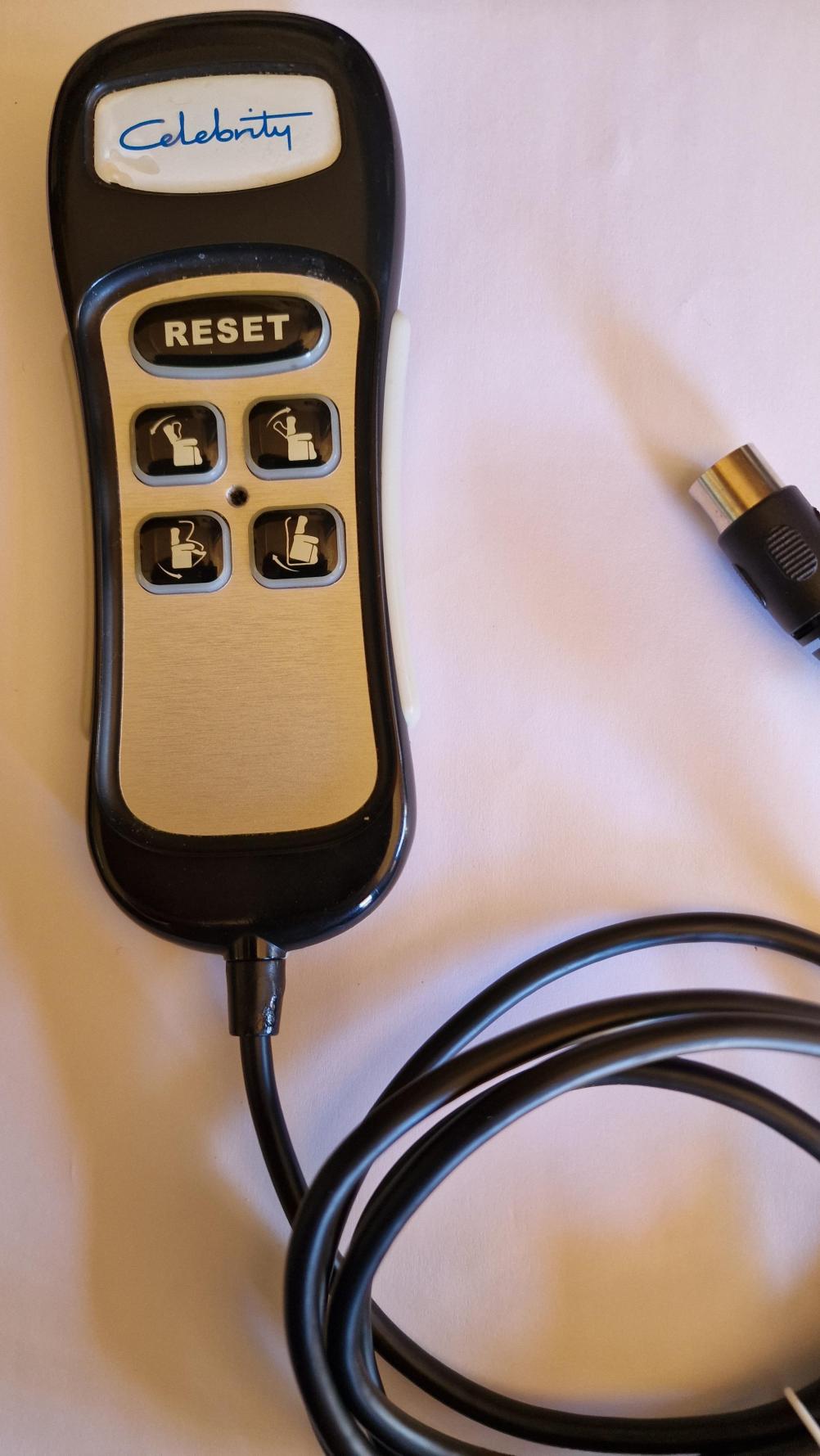

Also the button contacts were worn.  After talking to the customer it was decided to replace the cable and gromet.   This was done with a straight cable (the original cable was already cut back prior to arrival with us meaning we couldn't use the original cable)

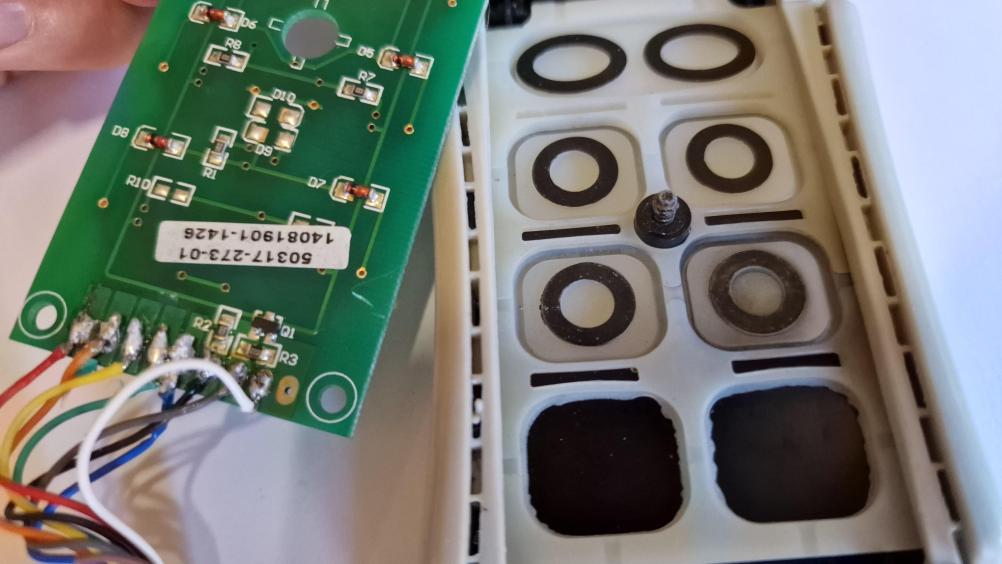

Replacement conductive pads were also glued into place under each of the main buttons.



Remote Images
