TEAC RC-711 Remote Control Repair
Job Timeline (Ref 8396-20)
Independent Repair Service Notice:
We are an independent repair service and are not affiliated with any of the brands or manufacturers shown on this website.
All items are customer-owned devices sent to us for professional repair services.
Brand names and logos are used for identification purposes only.
TEAC RC-711 Remote Repair Details
Manufacturer
TEAC
Model
RC-711
Customer's Fault Description
All looks OK - but not working
Remote Fixer Repair Response

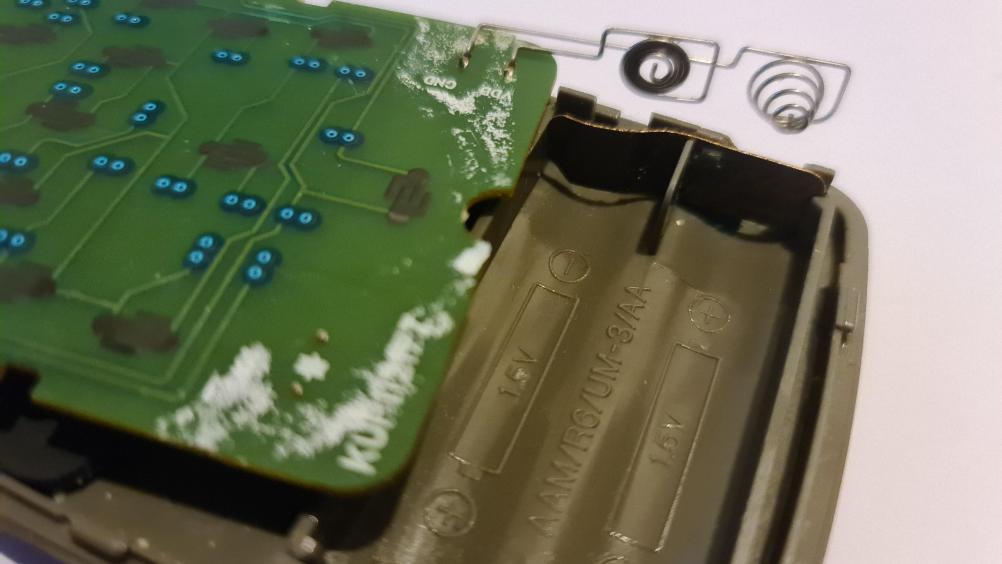

This Teac remote arrived safely and on testing was confirmed not to be transmitting on any button. There was signs of a battery leak on one of the terminal strips (see image). This had corroded the surface of the terminals causing a resistance. This meant that a low voltage was being received onto the main PCB. The effected terminal was replaced, the original terminal type was not available as a spare and therefore spring type terminals were hot melted into place. This restored full functionality.
Hi Fi System Controller Testing Video
Remote Control Repair Testing Video

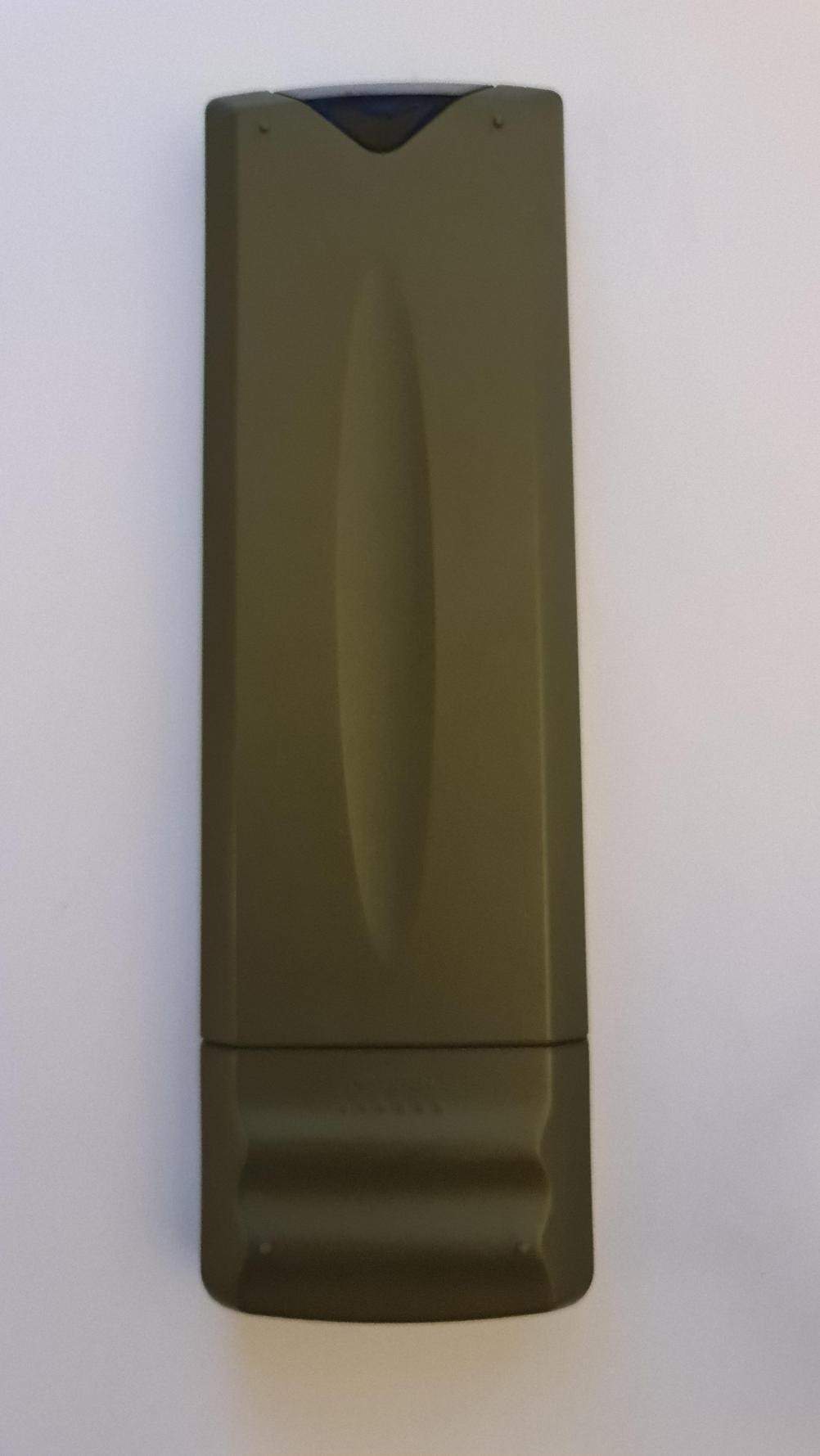

Images of Customer's Remote Control
The following images show the actual remote control sent to us by the customer for professional repair services.
